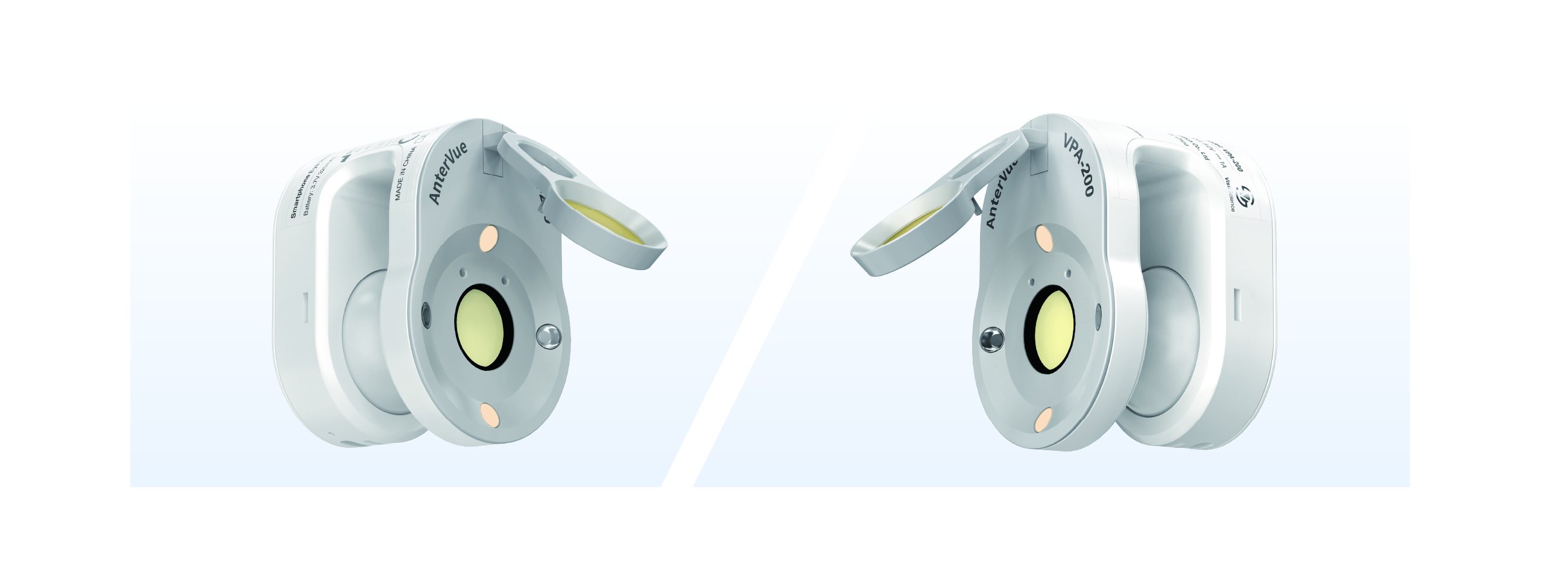

| QuikVue Plus Design Concept |

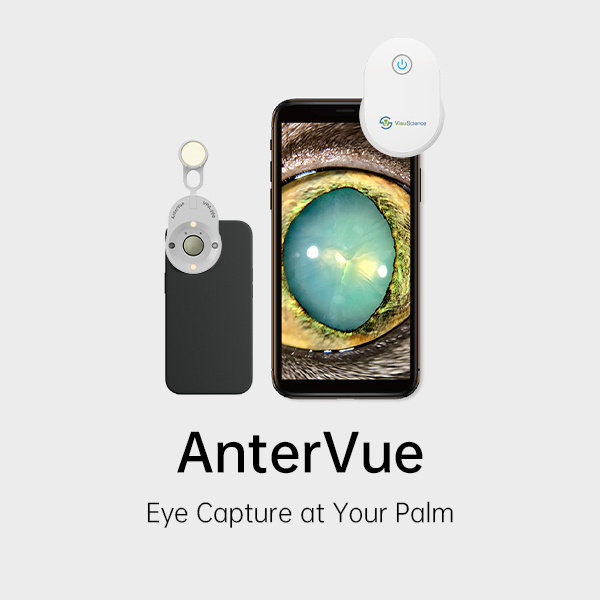

| It is well acknowledged that imaging is playing a more and more important role in ophthalmology diagnosis. QuikVuePlus is a smartphone adaptor designed especially for anterior segment imaging. It provides 10x magnification which meets the basic eye examination demand for optometrists, general practitioners, pediatricians, veterinarians, etc. The specially designed optical lens enables QuikVue Plus to capture clear anterior images for primary eye care examination and telemedicine. |
|
Blepharitis Check
QuikVue can fit on smartphone or tablet to check blepharitis. It can capture HD eye lid image. Doctor can demonstrate the image to patient and suggest eye lid cleaning products if needed.
|
 |
|
 |
OK Lens Fitting
With integrated yellow filter and cobalt blue illumiantion, QuikVue can quickly capture Ortho-K lens fitting images for optometrists' taking record and evaluate lens fitness.
|
|
Cornea Pathology Capture
QuikVue Plus adaptor can capture all kinds of cornea pathlogies such as cornea ulcer, Superficial Punctate Keratitis, etc. It can also do pre and post operative imaging for ophthalmologists to record and compare progression.
|
 |
 |
Vet Ophthalmology Imaging
QuikVue Plus adaptor can also be used for vet ophthalmology imaging. Veterinarians can capture animals' eye diseast with QuikVue and smartphone. It will be much easier than image animals' eyes with slit lamp as animals are not as cooperative as human beings.
|
|
 |
White and Blue Illumination
QuikVue Plus provides both white and blue illumination respectively. The white LED projects warm white light which is similar to slit lamp’s halogen illumination. There are two levels of white illumination available to meet different brightness demand during examination. The blue illumination can be used to capture fluorescein images to assist diagnosis with corneal staining and contact lens fitting, etc.
|
|
Smartphone Compatibility

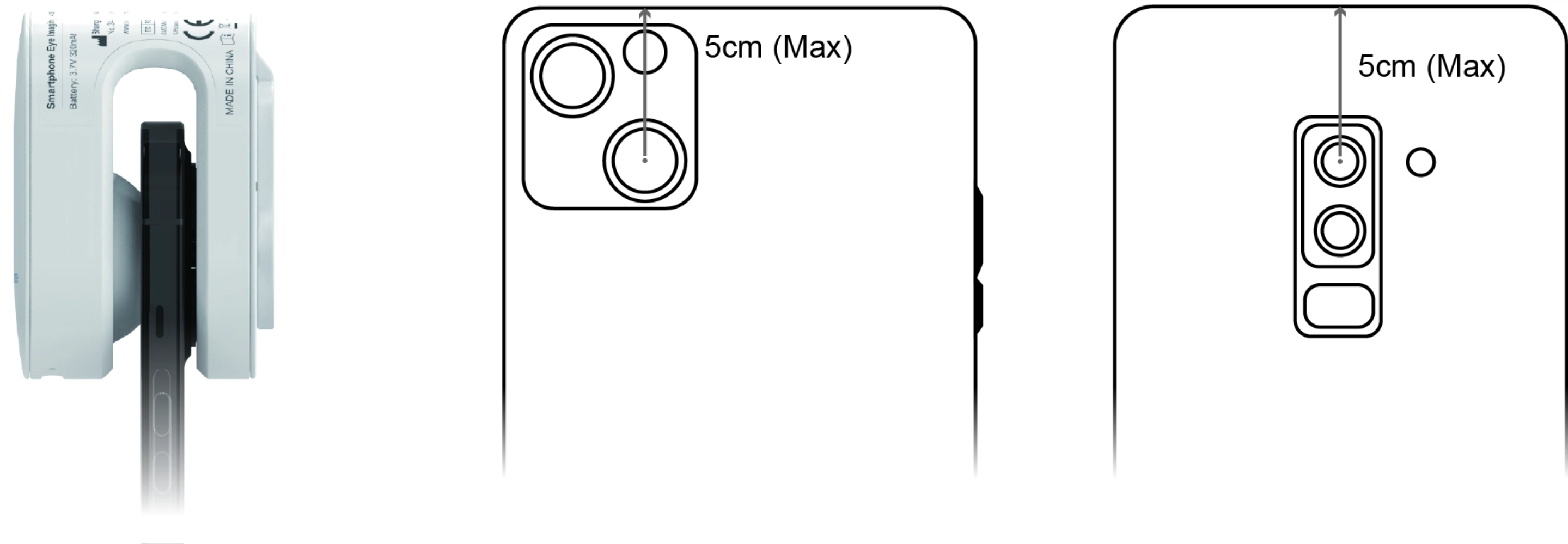

Thanks to the air cushion design, QuikVue Plus is able to attach on most of the phones in the market firmly. Clinicians need to align QuikVue Plus lens with smartphone’s main camera. The requirements for the main camera location is as right.
|
 |
Specification
| Model No. |
VPA-200 |
| Magnification |
10X |
| Illumination |
White (2 levels), Cobalt blue |
| White (2 levels), Cobalt blue |
5 hours
|
| Power supply |
Rechargeable Li-on battery |
| Filter |
Flipable yellow filter (optional) |
|
|
|
