How to Check EyeStream Compatibility for Slit lamps

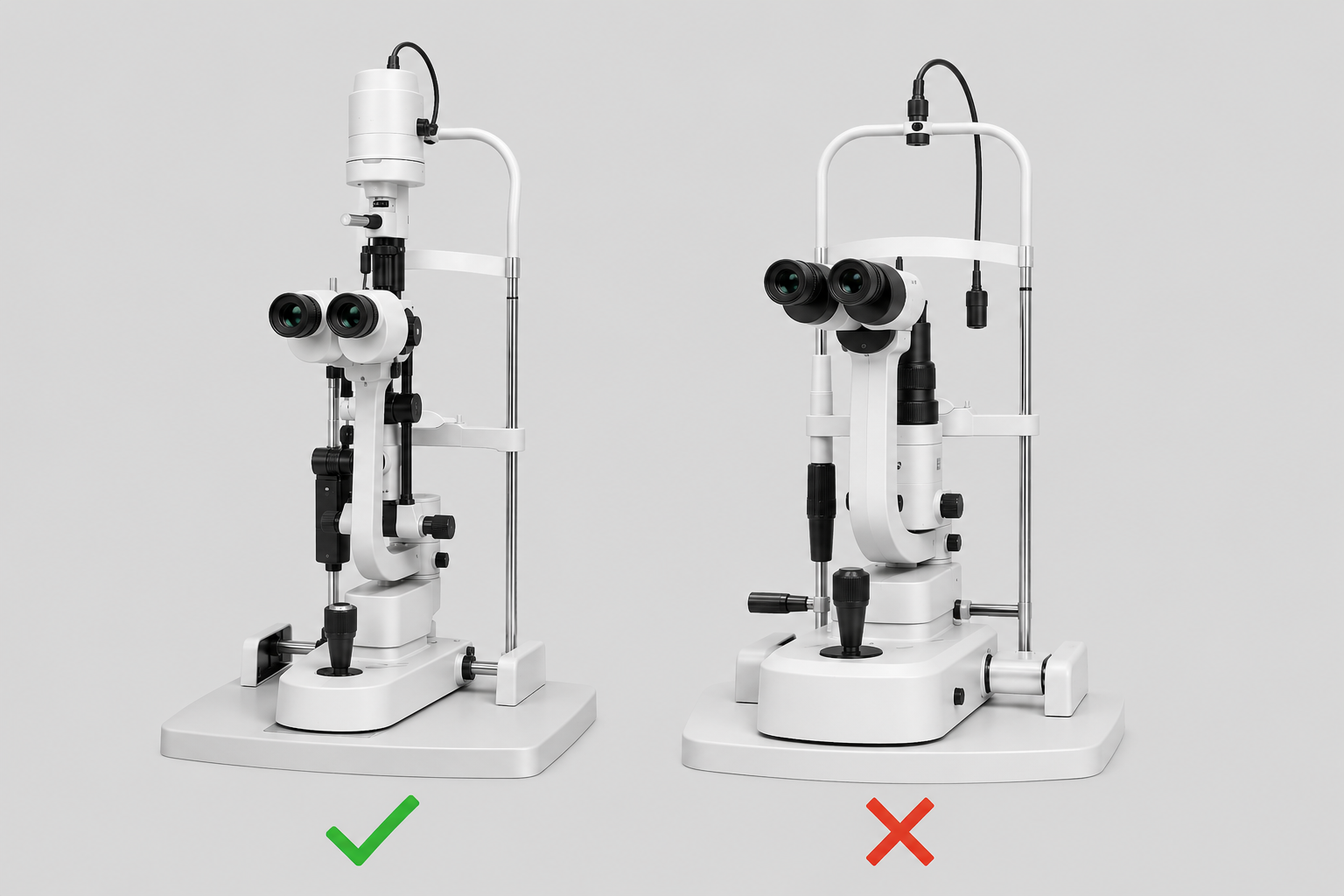

1. Compatible slit lamp types

EyeStream currently supports slit lamps with the following configuration:

• Upper illumination (upper light source) slit lamps

• Rotation drum magnification system (typically 3 or 5 magnification steps)

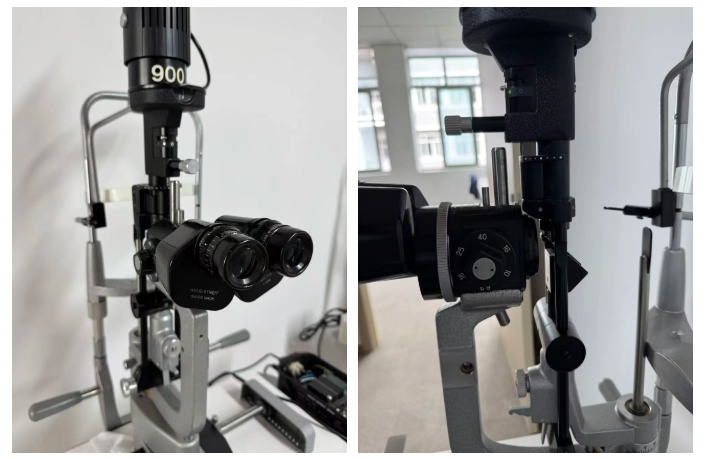

 2. Haag-Streit BQ900 and similar models

For slit lamps such as the Haag-Streit BQ 900 (and similar designs), EyeStream is directly compatible.

• These models typically provide sufficient mounting space and structural support

• No additional measurement is usually required for basic compatibility confirmation

• Standard installation setup applies

3. Topcon-style slit lamps (require measurement verification)

For Topcon-style slit lamps or similar designs, please perform the following measurements to confirm compatibility:

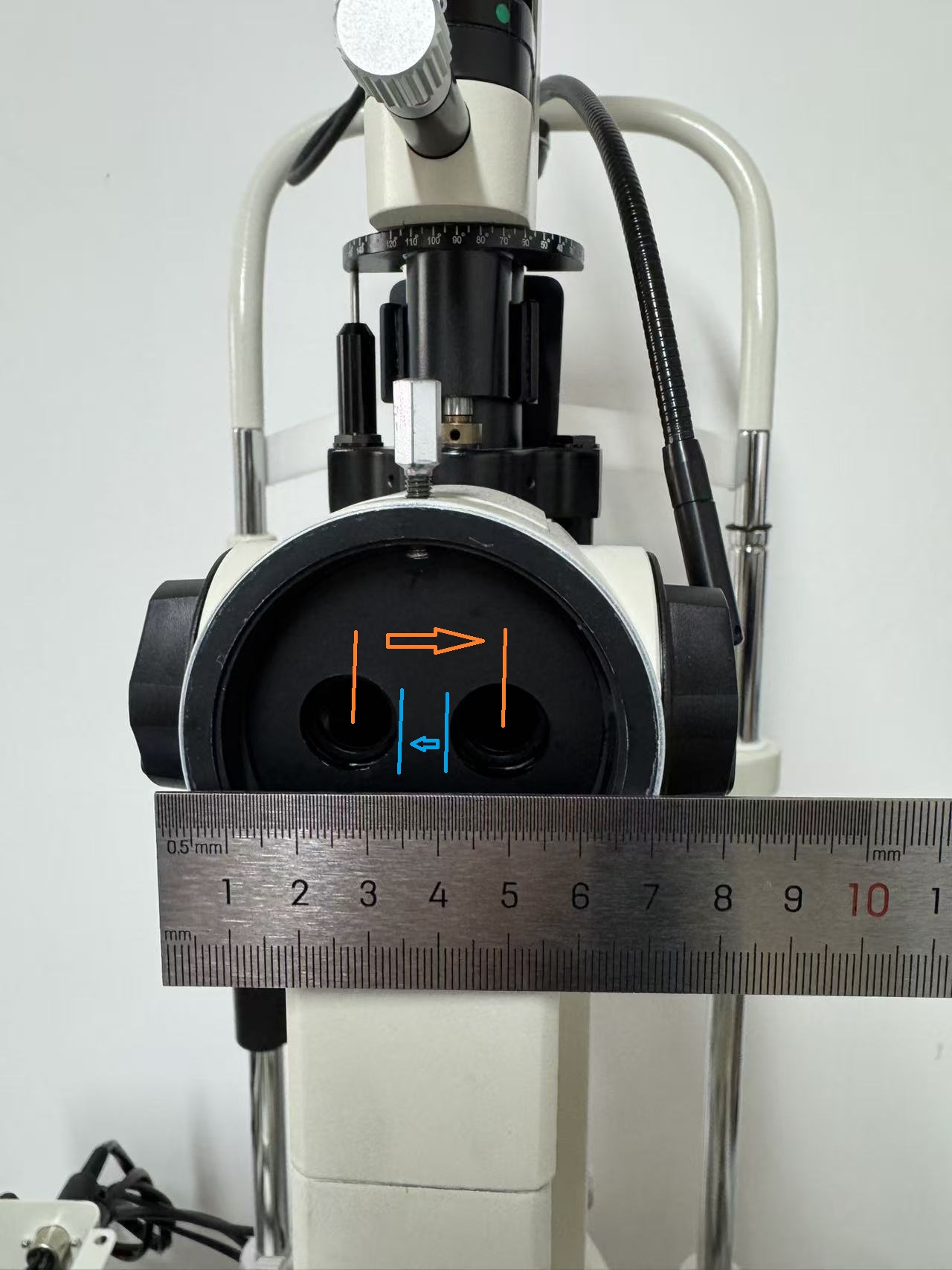

A. Eyepiece center-to-center distance

• Place a ruler horizontally beneath the two eyepieces

• Measure the distance between the optical center points of both eyepieces

• This confirms whether the EyeStream optical alignment module can be properly positioned

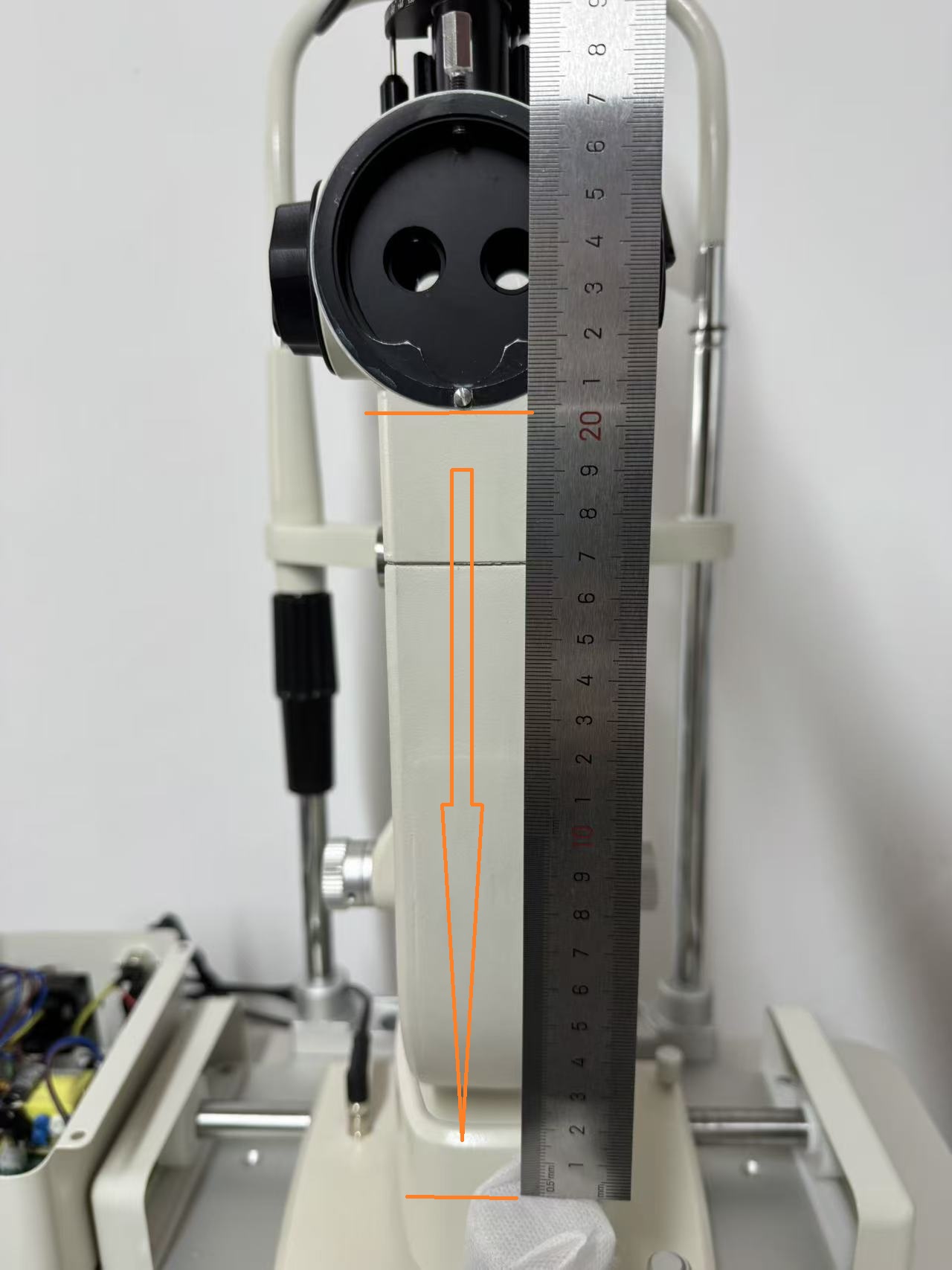

B. Vertical clearance for joystick installation

• Measure the vertical distance from the bottom of the eyepiece assembly to the top of the joystick

• Ensure there is sufficient clearance to install the EyeStream module without obstruction during operation




4. Final verification

If you are unsure about compatibility after measurement:

• Please send photos with ruler markings clearly visible


• Include a side view of the slit lamp with joystick area

• Our engineering team will verify installation feasibility
